Ladder rung profiles

Variante 1
VARIANTE 1
Variante1 25x30x2 Length(mm) Weight  (kg/each)
Steel StW 22 327* 0,40
  2000 2,42
Stainless steelV2A 327* 0,40
  2000 2,40
Aluminium AlMg3 327* 0,14
  2000 0,83
Stainless steelV4A 1.4571 2000 2,40

*with notch according to drawing

Variante 2
VARIANTE 2
Variante 2 35x30x2 Length ( mm)

Weight
(kg/each)
SteelStW 22 334* 0,47
  2000 2,79
Stainless steel V2A 334* 0,47
  2000 2,81
Aluminium AlMg3 334* 0,16
  2000 0,96
Stainless steel V4A 1.4571 2000 2,81

*with notch according to drawing

Variante 3
VARIANTE 3
Variante 3 50x40x2 Length (mm)

Weight
(kg/each)
Steel StW 22 roh 501* 0,96
  2000 3,83
Stainless steel  V2A 501* 0,97
  2000 3,86
Aluminium AlMg3 501* 0,33
  2000 1,32
Stainless steel V4A 1.4571 2000 3,86

*with notch according to drawing

Cerbere*
Cerbere*
Stainless steelV4A 1.4404
Length Width Height Sheet tickness Weight (kg/each)
400 33 30 2 0,6
  • Leitersprosse Cerbere längs
  • Leitersprosse Cerbere quer

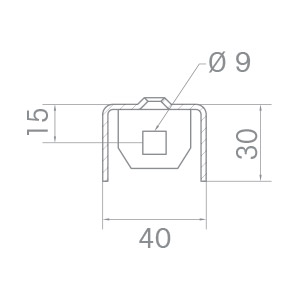

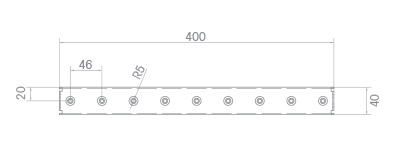

Tolpicot*

Tolpicot*

Galvanized
Length Width Height Sheet tickness Weight(kg/each)
400 40 30 2 0,6

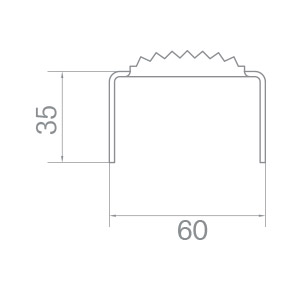

Tolplus*
Tolplus*
Steel StW 22
Length Width Height Sheet tickness Weight (kg/each)
1020 60 35 2 2,2
  • Ladder rung profiles Tolplus q

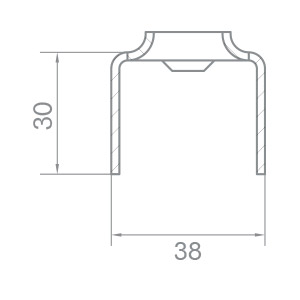

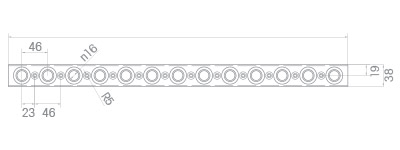

Tolrung*
Tolrung*
Steel StW 22
Length Width Height Sheet tickness Weight (kg/each)
330 33 30 2 0,6
500 38 30 2 0,8
Aluminium AlMg3
Length Width Height Sheet tickness Weight(kg/each)
145 33 36 3 0,1
338 33 30 3 0,3
600 33 30 3 0,5

* Produced in France
