Ladder rung profiles

MEISER ladder rung profiles are characterised by their upward facing perforations and embossed surface. They ensure safe standing in areas where sure-footedness is vital. Our wide range of different ladder rungs provides the ideal solution for climbing in all kinds of applications.

Occupational safety and the maximum possible anti-slip effect are the most important factors here. Our ladder rung profiles are delivered untreated.

Non standard variations are available on request.

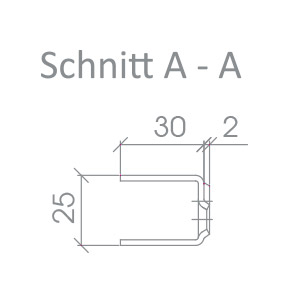

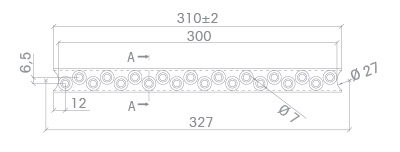

VARIANTE 1
25 X 30 X 2

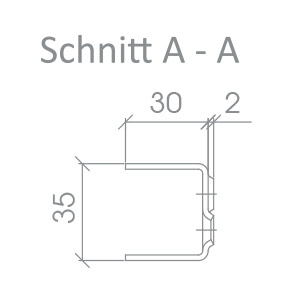

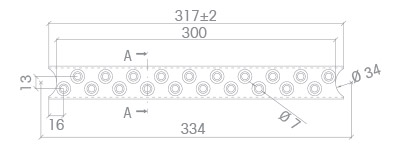

VARIANTE 2
35 X 30 X 2

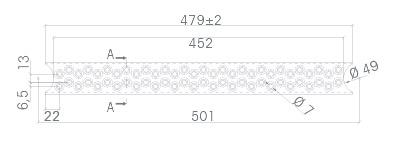

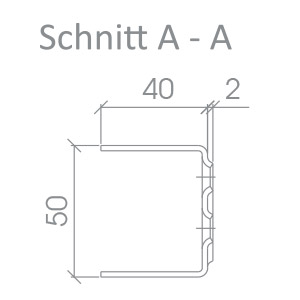

VARIANTE 3
50 X 40 X 2
  Length in mm Weight in kg/each Length in mm Weight in kg/each Length in mm Weight in kg/each
Steel
StW 22		 327* 0,40 334* 0,47 501* 0,96
2000 2,42 2000 2,79 2000 3,83
Stainless steel V2A 327* 0,40 334* 0,47 501* 0,97
2000 2,43 2000 2,81 2000 3,86
Aluminium AIMg3 327* 0,14 334* 0,16 501* 0,33
2000 0,83 2000 0,96 2000 1,32
Stainless steel V4A 1.4571 2000 2,40 2000 2,81 2000 3,86

*= with notch



Technical data

Variante 1

Variante 2

Variante 3
