Toldiamant G
Product information
The closed surface can screen off areas from view. Nothing can fall or drip through, but safe standing is still ensured. It is used generally in the architectural sector as well as indoors and as a facade plank.

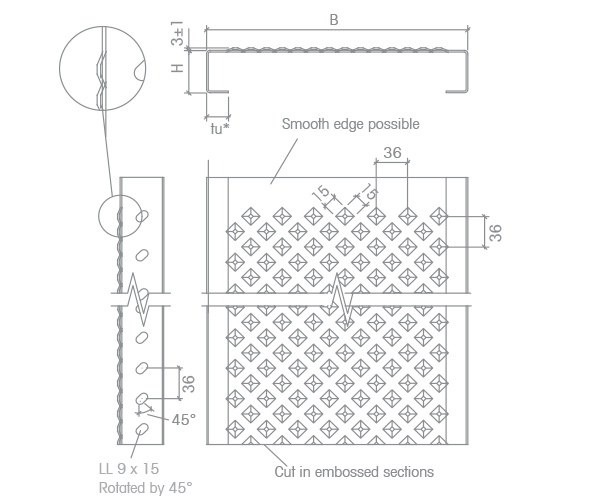

Technical data
Dimensions
|
Material |
Sheet thickness |
As class |
|
Raw / hot-dip galvanised steel[DD11] |
2,0 / 2,5 / 3,0 |
R10 |
|
Sendzimir galvanised steel [DX51] |
2,0 / 2,5 / 3,0 |
R10 |
|
Aluminium [AIMg3] |
2,5 / 3,0 |
R10 |
|
Stainless steel [1.4301] |
2,0 |
R10 |
|
preferred widths |
180 / 240 / 300 |
|
|
preferred heights |
30 / 50 / 75 / 100 /Other heights on request |
|
|
lengths |
max. 3.996 mm |
|
|
length divider |
36 |
|
Special sizes or materials on request. Stored sizes according to stock list.
All data in mm.
* Produced in France.
