Tolroc N
Product information
Tolroc N‘s serrated, upward punched holes mean good anti-slip properties. A high point load is achieved thanks to its very high transverse stiffness. Tolroc N is used primarily in the industrial sector. The large, downward punched openings ensure very good drainage action.
Technical data

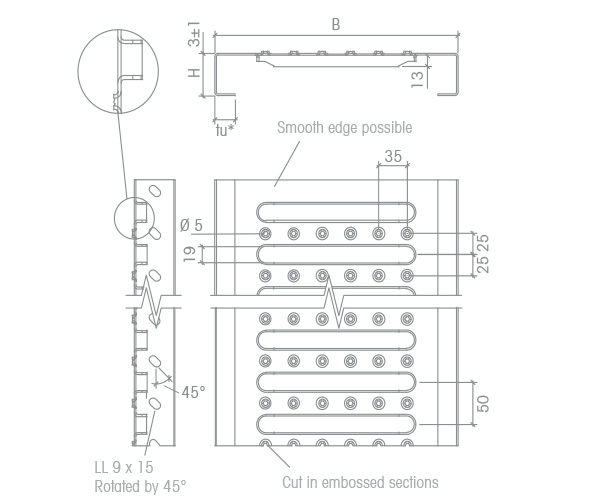

Dimensions
|
Material |
Sheet thickness |
As class |
|
Raw / hot-dip galvanised steel[DD11] |
2,0 / 2,5 / 3,0 |
R11 |
|
Sendzimir galvanised steel [DX51] |
2,0 / 2,5 / 3,0 |
R11 |
|
Aluminium [AIMg3] |
2,5 / 3,0 |
R11 |
|
Stainless steel [AISI 304L] |
2,0 |
R11 |
|
preferred widths |
160 / 180 / 240 / 320 |
|
|
preferred heights |
30 / 50 / 75 / 100 / / Other heights on request |
|
|
lenghts |
max. 6.030 mm |
|
|
length divider |
50 |
|
Special sizes or materials on request. Stored sizes according to stock list.
All data in mm.
*Produced in France.
Accessories / Fixing clips
Gussoberteil für alle Stepbloc- sowie Drainstep-Formen mit Senkloch für Senkkopfschrauben
Cast metal clamp for assembling frombelow, available in various versions.
